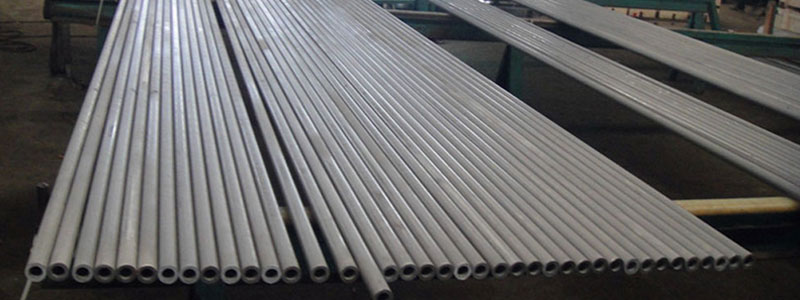

Technolloy Inc. is today clamoring in gathering and offering the phenomenal idea of Inconel 600/601/625/718 Pipes and Tubes. This grade material directing and tubing are arranged by really using the excellent idea of mix that further adds more conspicuous fortitude to the thing quality. We are the client-arranged merchant that is giving something almost identical to the clients in various sizes, closes, specifics, rules, types, lengths, and designs. The thing is arranged by recalling a couple of worldwide thing quality standards. It is like ASME, ASTM, API, ASTM, etc. Furthermore, it is given to our clients at uniquely planned judgments and standards.
Inconel 600 mix is the nickel and chromium settled composite. It is having fantastic insurance from oxidation at a more noticeable temperature. Moreover, it is having incredible resistance ability to the climate that is carburizing and chloride containing. It is a non-appealing composite and is having commonly magnificent mechanical qualities. Inconel 601 is the chromium and nickel-based material that is used for the reasons that need power and utilization obstacle property. This material stands separated because of its high-temperature oxidation resistance limit.
Inconel 625 is a nickel offset super mix. It holds amazing strength properties and is impenetrable to the incredibly high temperatures. Also, it shows extraordinary protection against oxidation and utilization. It also keeps extents of temperatures and more essential tension. Inconel 718 material is molybdenum, chromium, nickel-based material established for restricting significantly disastrous climate, pitting and moreover opening utilization. This material shows commonly incredible versatility, yielding strength and creep/break credits at a more unmistakable temperature.
Today our Inconel 600/601/625/718 Pipes and Tubes are used broadly in various current applications. A couple of uses are heat exchangers, crush and paper industry, condensers, petrochemicals, drugs, structures, improvements, seawater applications, etc. Inconel 600/601/625/718 Pipes and Tubes is totally quality checked to guarantee that we don't supply the horrendous idea of the comparable to our overall respect clients. As such the tests we direct are PMI tests, evening out tests, smaller than expected tests, etc. The TC we give is MTC as per En10204/3.1b, radiography test report, etc packaging is moreover gotten done with as per the suppositions for the clients.
600/601/625/718 Inconel Pipes and Tubes Equivalent Grades
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
---|---|---|---|---|---|---|---|
Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
Inconel 718 | 2.4668 | N07718 | - | - | - | - | - |
Specification of Inconel Seamless Welded Pipes And Tubes
Inconel Pipe Specification : ASTM B167, B517, B983, B444, B705 / ASME SB167, SB517, SB983, SB444, SB705
Inconel Tube Specification : ASTM B516 / ASME SB516, ASTM B704 / ASME SB704, ASME SB983
Standard : ASTM, ASME and API
Tube Size : 15"NB – 150"NB
Thickness Range : 6.35 mm OD upto 254 mm OD in 0.6 TO 20 mm thickness.
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
End Protection : Plastic Caps
Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing : Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials : Sizes and Specifications other than above can be manufactured on request
Chemical Composition of Inconel Alloy Seamless / Welded Pipes and Tubes
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
---|---|---|---|---|---|---|---|---|
Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | - | 5.0 max | 58.0 min | 20.0 - 23.0 |
Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | - | 50.00 - 55.00 | 17.00 - 21.00 |
Mechanical Properties of Inconel Alloy 600/601/625/718 Pipes and Tubes
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
---|---|---|---|---|---|
Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
