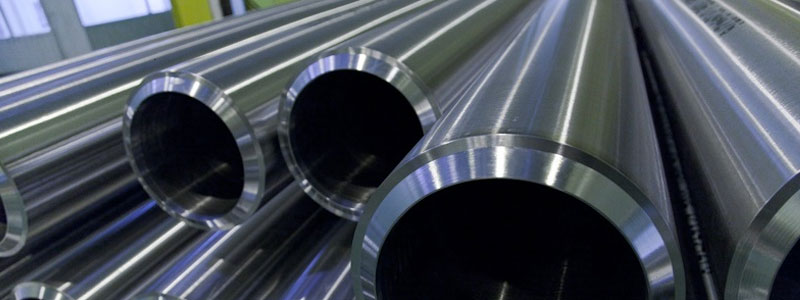

principal suppliers and makers of Monel 400/K-500 Pipes and Tubes. We have been serving an alternate get-together of clients with our quality things. We have been a piece of this industry for a seriously prolonged stretch of time. We offer these lines in various thickness assessments.
These lines are created utilizing nickel-copper compound. It contains Nickel in serious degree and it contains an elevated degree of copper as well. The mix of strong mechanical properties and compound balance makes it impenetrable to seawater and steam at high temperatures. To this end present day applications where high temperatures and voltage are a piece of the cycle use these lines. Moreover, similar properties win in salt and cruel game plans too. The presence of nickel in these lines chooses various real characteristics. Indisputably the most prominent are splendid utilization resistance under the presence of all sort water and acids, incredible welding ability and raised level of mechanical and inflexibility. This is sensible for an extensive variety of welding applications. Anyway, the tungsten twist welding is by and large typically used.
Technolloy Inc. puts sincerely in being one of the
These lines are known for their mind blowing mechanical properties at frosty temperatures. These lines are satisfactory to be used in raised temperatures. The condensing point is exceptionally high which makes it awesome. These lines show off low strength when these are in the tempered condition. Consequently in such a condition, numerous mentalities are used to recover strength. These lines are impenetrable to a great many acidic plans. It offers a low speed of utilization in rapidly streaming seawater and freshwater. To go with that it shows fabulous assurance from disintegration breaking in most troubling conditions. These properties lead to its wide use in marine applications and offshore applications. These are known for offering critical level security from the effect of solvent base.
The captivating mix of its strong mechanical properties and changed substance ascribes transforms into the central avocation for its enormous number of purposes. These lines are a lot of used in Marine planning, Freshwater and Gasoline tanks, in crude oil and petroleum ejections, in compound taking care of plants, etc. Beside this, these lines find use in raw oil enters and delivering present day power exchangers.
400/K500 Monel Pipes and Tubes Equivalent Grades
STANDARD | UNS | WNR. | EN | JIS | GOST | AFNOR | BS |
---|---|---|---|---|---|---|---|
Monel 400 | N04400 | 2.4360 | NiCu30Fe | NW 4400 | МНЖМц 28-2,5-1,5 | NU-30M | NA 13 |
Monel K500 | N05500 | 2.4375 | - | - | - | - | - |
Specification of Monel Alloy 400/K500 Pipes and Tubes
Monel Seamless Pipes and Tubes : ASTM B165, B163 / ASME SB165, SB163
Monel Welded Pipes and Tubes : ASTM B725 , ASME SB725 / ASTM B730, ASME SB730
Pipe Size : Seamless 1/2" - 10" , Welded 1/2" - 48".
Tube Size : 4 to 219mm W. T.: 0.5 to 20mm
Schedule : SSCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
End Protection : Plastic Caps
Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing : Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials : Sizes and Specifications other than above can be manufactured on request
Chemical Composition of Monel 400/K500 Seamless and Welded Pipes / Tubes
Grade | Ni | Fe | C | Mn | Si | Cu | Al | Ti | S |
---|---|---|---|---|---|---|---|---|---|
K500 | 63.0 min | 05 - 2 | 0.25 max | 1.5 max | 0.5 max | 27.0 - 33.0 | 2.3 - 3.15 | 0.35 - 0.85 | 0.010 max |
400 | 63.0- 70.00 max | 2.50 max | 0.3 max | 2.00 max | 0.50 max | Remainder | - | - | 0.024 max |
Mechanical Properties Of Monel 400/K500 Pipes and Tubes
Grade | Tensile (ksi) | .2% Yield (ksi) | Elongation % | Hardness (HRb) |
---|---|---|---|---|
400 | 75 to 90 | 25 to 50 | 60 to 35 | 60 to 80 |
K500 | Psi – 1,60,000 , MPa – 1100 | Psi – 1,15,000 , MPa – 790 | 20 % | - |
Physical Properties of Monel 400 Pipes And Tubes
Density@ Room Temp | 0.318 lb/in3 |
---|---|
Elastic Modulus @ 70ºF (tension) | 26.0 x 106psi |
Specific Heat @ 70°F | 0.102 Btu/lb/°F |
Melting Point | 2370°F to 2460°F |
Thermal Conductivity @ 70°F | 151 Btu • in/h/ft 2 /°F |
Electrical Resistivity @ 70°F | 0.511 μ Ω • m |
Physical Properties of Monel K500 Pipes And Tubes
Density (Kg.m-1) | 84.3 |
---|---|
Magnetic Permeability (20°C) | <1.005 |
Curie Temperature (°C) | -90 |
Young’s Modulus (N/mm2) | 179 x 103 |
Specific Heat, 20°C (J.Kg-1.°K-1) | 418 |
Specific Electrical Resistance, 20°C (?O.m) | 0.62 |
Thermal conductivity,20°C (W.m-1.°K-1) | 17.5 |
Mean coefficient of thermal expansion, 20-100°C (°K-1) | 13.4 x 10-6 |
