Technolloy Inc. is a surprising Suppliers, Manufacturers, stockiest and exporter of Monel 400/K500 Buttweld Fittings. These buttweld fittings are produce and organized by the general quality guidelines of rough substances. These buttweld fittings are open in a broad reach to our regard partners and course of action phenomenal and strength. We fabricate these buttweld fittings with the assistance of the social event of prepared experts and experts utilizing the most recent methodology and instruments. We give these buttweld fittings according to the need of the client and plan these fittings in different shapes, sizes, thicknesses, classes, types, guidelines, decisions, grades, and that is just the beginning.
Monel 400/K500 is a Nickel-Copper Alloye that offers splendid check and stunning strength. These mixes offers dumbfounding protection from different terrible climate like seawater, sulphuric horrendous, hydrofluoric damaging, and corrosive neutralizers. This Monel 400/K500 gives remarkable layered dependability and can overcome the different degree of temperatures like in freezing and in high temperatures. Monel 400 offers extraordinary mechanical properties like higher strength, rigidity, and hardness because of the expansion of titanium. Monel K500 shows more noteworthy rigidity and yield strength and gives different other great properties. These buttweld fittings offer momentous security from pitting use and isolated crumbling and safeguards in ridiculous natural circumstances.

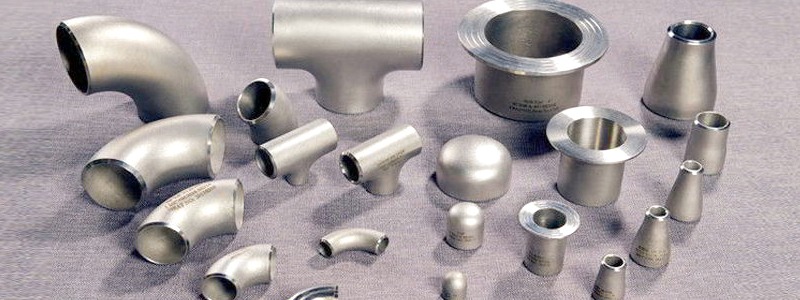

Such Monel 400/K500 Buttweld Fittings that we offer are Lateral Tee, Equal Tee, Monel 400/K500 45 Degree Elbow, Pipe Fittings, Eccentric Reducer, Concentric Reducer, Long Stub End, Short Stub End, End Cap, Bend, Equal Cross and some more.
Monel 400/K500 Buttweld Fittings are utilized by several utilizations of associations and in various arranging districts. The associations wherein these buttweld fittings are utilized, for example, power age, gas dealing with, seawater gear, heat exchangers, Alloy hardware, pound and paper industry, drug gear, oil-shore oil depleting industry, and some more.
We complete two or three material testing's on these buttweld fittings to guarantee the possibility of these prior to giving them to our regard supports. The two or three tests we execute seem to be mechanical test, PMI testing, substance test, fixing test, little test, full scale test, IGC test, and so forth. We give all the basic documentation and test affirmations with these buttweld fittings.
400/K500 Monel ASTM B366 Buttweld Fittings Equivalent Grades
STANDARD | UNS | WNR. | EN | JIS | GOST | AFNOR | BS |
---|---|---|---|---|---|---|---|
Monel 400 | N04400 | 2.4360 | NiCu30Fe | NW 4400 | МНЖМц 28-2,5-1,5 | NU-30M | NA 13 |
Monel K500 | N05500 | 2.4375 | - | - | - | - | - |
Specification of Monel Alloy Buttweld Fittings
Specifications : ASTM B366 / ASME SB366
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : Seamless Butt Weld Fittings : 1/2" - 10" |
Welded Butt Weld Fittings : 1/2" - 48"
Schedule : SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Type : Seamless / ERW / Welded / Fabricated
Thickness :20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.
Chemical Alloyion of Monel 400/K500 Seamless and Welded Pipe Fittings
Grade | Ni | Fe | C | Mn | Si | Cu | Al | Ti | S | Monel 400 | 63.0- 70.00 max | 2.50 max | 0.3 max | 2.00 max | 0.50 max | Remainder | - | - | 0.024 max |
---|---|---|---|---|---|---|---|---|---|
Monel K500 | 63.0 min | 05 - 2 | 0.25 max | 1.5 max | 0.5 max | 27.0 - 33.0 | 2.3 - 3.15 | 0.35 - 0.85 | 0.010 max |
Mechanical Properties Of ASME SB366 Monel Buttweld Pipe Fittings
Grade | Tensile (ksi) | .2% Yield (ksi) | Elongation % | Hardness (HRb) |
---|---|---|---|---|
400 | 75 to 90 | 25 to 50 | 60 to 35 | 60 to 80 |
K500 | Psi – 1,60,000 , MPa – 1100 | Psi – 1,15,000 , MPa – 790 | 20 % | - |
Physical Properties of Monel 400 Buttweld Fittings
Density@ Room Temp | 0.318 lb/in3 |
---|---|
Elastic Modulus @ 70ºF (tension) | 26.0 x 106psi |
Specific Heat @ 70°F | 0.102 Btu/lb/°F |
Melting Point | 2370°F to 2460°F |
Thermal Conductivity @ 70°F | 151 Btu • in/h/ft 2 /°F |
Electrical Resistivity @ 70°F | 0.511 μ Ω • m |
Physical Properties of Monel K500 Buttweld Fittings
Density (Kg.m-1) | 84.3 |
---|---|
Magnetic Permeability (20°C) | <1.005 |
Curie Temperature (°C) | -90 |
Young’s Modulus (N/mm2) | 179 x 103 |
Specific Heat, 20°C (J.Kg-1.°K-1) | 418 |
Specific Electrical Resistance, 20°C (?O.m) | 0.62 |
Thermal conductivity,20°C (W.m-1.°K-1) | 17.5 |
Mean coefficient of thermal expansion, 20-100°C (°K-1) | 13.4 x 10-6 |
