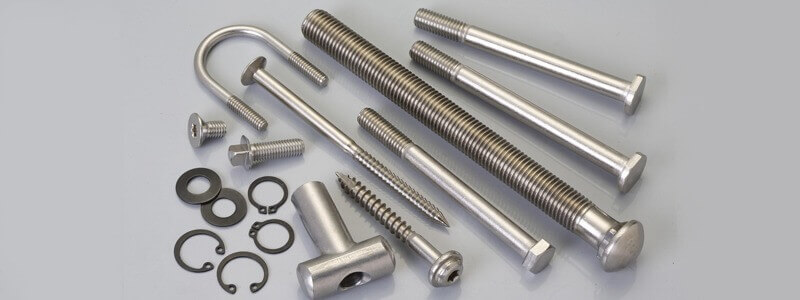

Hastelloy C22/C276 Fasteners
Technolloy Inc. is known for giving extraordinary append to clients the entire way across the globe. We even thing them to clients across the general market. Something notable at Technolloy Inc. is Hastelloy c22/C276 Fasteners. These safe solid areas for are strong to be used in various applications. The catches are given by the necessities of clients and they can get secure at custom length and thickness from us. Our things are all of public and generally rules. We by and large have a tremendous heap of our things so the clients don't have to encounter the malicious impacts of the shortage of something basically the same.
Hastelloy c22/C276 Fasteners are suggested have properties like amazing layered exactness, restricting to hurting property, reliable, high strength, high flexibility, liberal new turn of events, high versatility, and that is only the start. Moreover, the Fasteners are perfect for conflicting with mileage in high-temperature airs and hurting conditions. A piece of the circumstances where these Fasteners show block is oxidizing media, diminishing media, chloride conditions, and sulfur conditions. They can struggle with attacks by made materials like nitric awful, chlorine, sulfur, acidic, normal, inorganic, phosphorous, and that is only the start.
Hastelloy c22/C276 Fasteners are conveyed utilizing a precipitation cementing nickel-molybdenum that results in high unfaltering nature, hardness, exhaustion property, utilization got, less mutilation, remarkable formability, and anything is possible beginning there. In this manner, our things are fit to various applications that regard these properties. A piece of these application attempts are substance making due, progress, marine endeavors, power plants, petrochemical, food managing, and anything is possible beginning there. These affiliations require Fasteners with exceptional properties considering the way that the working temperature and various conditions are especially serious here. A few conditions coordinate chloride use that causes crumbling like opening, pitting, and stress utilization breaking. The Hastelloy c22/C276 Fasteners are safe to these conditions. From now into the foreseeable future, Fasteners don't get harmed by these attacks in hurting and liquid media.
Hastelloy c22/C276 Fasteners is going through a few material tests. This is to ensure the clients that they are outfitted with the most intelligent idea of the Fasteners. A piece of the tests which are performed are hardness, hydrostatic, ultrasonic, compound test, mechanical test, pitting impediment test, and different others. We in this manner give the safeguarded transportation of our things to give them safely to our clients.
C22/C276 Hastelloy ASTM B574 Fasteners Equivalent Grades
| STANDARD | UNS | WNR. | EN | JIS | GOST | OR |
|---|---|---|---|---|---|---|
| Hastelloy C22 | N06022 | 2.4602 | NiCr21Mo14W | NW 6022 | - | - |
| Hastelloy C276 | N10276 | 2.4819 | NiMo16Cr15W | NW 0276 | ХН65МВУ | ЭП760 |
Specification of Hastelloy Alloy Fasteners
Specification : ASTM B574 / ASME SB574
Dimension : DIN, ISO, ASTM, JIS, BS, GB, IS and all International Standards
Size Range : M3 - M56 | 3/6" to 2" | Custom Sizes
Length : 3 mm to 200 mm
Types : Nuts, Bolts, Screws, Sockets, Studs, Screw, Hex Set Screw, Socket Screw, Cap Screw, Pan Head Screw, Machine Screw, Socket Head Cap Screw, Allen Cap screw, Wing Screw, Washers, Spring Washers, Studs, Anchors, Marine Anchors, Nut, Hexagon Nut, Hex Nut, Hex Coupling Nut, Hex Domed Cap Nuts, Square Nut, Stud Bolts, Hex Head Bolts, Socket Hexagon Head Screw Anchor Bolt, U- Bolts, J Bolts, Mushroom Head Square Neck Bolts, T-Head Bolts, Wing Screw, Eye Bolt, Foundation Bolts, Structural Bolts.
Hastelloy C22 Fasteners Manufacturers in Mumbai, Hastelloy C22 Fasteners Suppliers in Mumbai, Hastelloy C22 Fasteners Stockists in Mumbai, Hastelloy C22 Fasteners Exporters in Mumbai, Hastelloy C276 Fasteners Manufacturers in Mumbai, Hastelloy C276 Fasteners Suppliers in Mumbai, Hastelloy C276 Fasteners Stockists in Mumbai, Hastelloy C276 Fasteners Exporters in Mumbai
Chemical Composition of Hastelloy C22/C276 Industrial Fasteners
| Grade | Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr | W | V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hastelloy C22 | Balance | 0.010 max | 12.5-14.5 | 0.50 max | 0.08 max | 2-6 | 0.02 max | 0.02 max | 2.5 max | 20-22.5 | 2.5-3.5 | 0.35 max |
| Hastelloy C276 | Balance | 0.01 max | 15–17 | 1.0 max | 0.08 max | 4–7 | 0.04 max | 0.03 max | 2.5 max | 14.5–16.5 | 3–4.5 | 0.35 max |
Mechanical Properties Of ASME SB574 Hastelloy Bolts & Nuts
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000, MPa – 690 | Psi – 45000, MPa – 310 | 45 % |
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
Physical Properties of Hastelloy C22 Fasteners
| Density | 0.314 lb/in3 |
|---|---|
| Specific Gravity | 8.69 lb/in3 |
| Specific Heat (Btu/lb/Deg F - [32-212 Deg F] | 0.1 |
| Melting Point (Deg F) | 2550 |
| Thermal Conductivity | 70 |
| Mean Coeff Thermal Expansion | 6.9 |
| Modulus of Elasticity Tension | 29.9 |
Physical Properties of Hastelloy C276 Fasteners
| Physical Property | Temp., °F | British Units | Temp., °C | Metric Units |
|---|---|---|---|---|
| Density | 72 | 0.321 lb/in.3 | 22 | 8.89 g/cm.3 |
| Melting Range | 2415-2500 | 1323-1371 | ||
| Electrical Resistivity | 75 | 51 microhm-in. | 24 | 1.30 microhm-m |
| Mean Coefficient of Thermal Expansion |
75-200 | 6.2 microinches/in.-°F | 24-93 | 11.2 x 10-6 m/m•K |
| 75-400 | 6.7 microinches/in.-°F | 24-204 | 12.0 x 10-6 m/m•K | |
| 75-600 | 7.1 microinches/in.-°F | 24-316 | 12.8 x 10-6 m/m•K | |
| 75-800 | 7.3 microinches/in.-°F | 24-427 | 13.2 x 10-6 m/m•K | |
| 75-1000 | 7.4 microinches/in.-°F | 24-538 | 13.4 x 10-6 m/m•K | |
| Thermal Conductivity | -270 | 50 Btu-in./ft.2 hr.-°F | -168 | 7.2 W/m•K |
| -100 | 60 Btu-in./ft.2 hr.-°F | -73 | 8.6 W/m•K | |
| 0 | 65 Btu-in./ft.2 hr.-°F | -18 | 9.4 W/m•K | |
| 100 | 71 Btu-in./ft.2 hr.-°F | 38 | 10.2 W/m•K | |
| 200 | 77 Btu-in./ft.2 hr.-°F | 93 | 11.1 W/m•K | |
| 400 | 90 Btu-in./ft.2 hr.-°F | 204 | 13.0 W/m•K | |
| 600 | 104 Btu-in./ft.2 hr.-°F | 316 | 15.0 W/m•K | |
| 800 | 117 Btu-in./ft.2 hr.-°F | 427 | 16.9 W/m•K | |
| 1000 | 132 Btu-in./ft.2 hr.-°F | 538 | 19.0 W/m•K | |
| Specific Heat (Calculated) |
Room | 0.102 Btu/lb.-°F | Room | 427 J/kg•K |
