Technolloy Inc. . is the solid maker, provider, and exporter of assortment metal works. Our different thing range is broad of Hastelloy c22/C276 Buttweld Fittings. These are the line fittings utilized for assortment making and current segments of the economy. They are amazing to work under tension and stress. Hence, they have been utilized in making the watertight pipelining to deal with the moderate as well as high strain during the distribution of liquids, gases, and so on. They similarly have amazing foe of rusting credits that make serious areas of strength for them use.
They can be helped in various made game arrangements like unsurprising, ERW, welded, and created. Its most essential loosening up point goes to 1443 degrees Celsius (or 2430 degrees Fahrenheit). Besides, it has a greatest stretching out reach to 30%. Besides, they have a moderate degree of reasonable as well as yield qualities. In this manner, several key undertakings use Hastelloy c22/C276 Buttweld Fittings like critical petroleum treatment workplaces, petrochemicals, acids, atomic power, bitumen revives, and so on.
They have great quality and capable applications like oil associations, power, substance, constructional experiences, gas, metallurgy, and shipbuilding, etc.The managing hypothesis behind the nuances, compound as well as mechanical properties of level C22 and C276 is covered under the ASTM B366 and ASME SB366 guidelines.

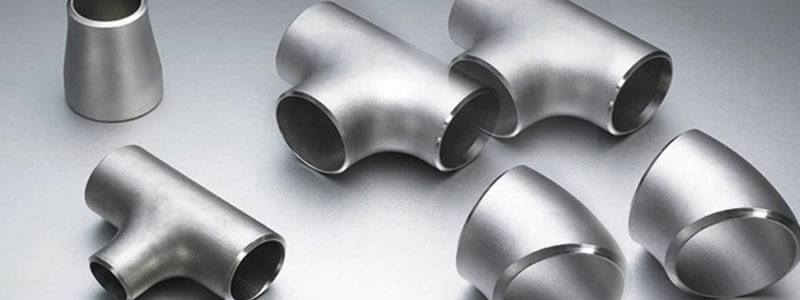

They are accessible in various sorts thinking about the shapes and their related limits. Like tees are utilized for the distribution and blend of liquids for example going through the pipelines. The line turns are utilized for smooth shift in the course of pipelines. Then again, 45-degree elbows are also used to adjust the direction yet by just 45-degree point
In addition, the line covers are there for making the fruition of the pipeline covered and secure. Along these lines, there are different sorts of buttweld fittings like peevish, pipe affiliations, pipe coupling, hung pipes, pipe turns, miter turns, and some more.
Hastelloy c22/C276 Buttweld Fittings are passed on through the course of push, press, gathering, and cast. Then, they should introduce forward several fundamental backings like 100 % ordinary substance beliefs, pariah assessment reports articulations, 100 percent radiography test reports, evening out test checks, launching test report, and so forth.
C22/C276 Hastelloy ASTM B366 Buttweld Fittings Equivalent Grades
STANDARD | UNS | WNR. | EN | JIS | GOST | OR |
---|---|---|---|---|---|---|
Hastelloy C22 | N06022 | 2.4602 | NiCr21Mo14W | NW 6022 | - | - |
Hastelloy C276 | N10276 | 2.4819 | NiMo16Cr15W | NW 0276 | ХН65МВУ | ЭП760 |
Specification of Hastelloy Alloy Buttweld Fittings
Specifications : ASTM B366 / ASME SB366
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : Seamless Butt Weld Fittings : 1/2" - 10" |
Welded Butt Weld Fittings : 1/2" - 48"
Schedule : SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Type : Seamless / ERW / Welded / Fabricated
Thickness :20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.
Chemical Composition of Hastelloy C22/C276 Seamless and Welded Pipe Fittings
Grade | Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr | W | V |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Hastelloy C22 | Balance | 0.010 max | 12.5-14.5 | 0.50 max | 0.08 max | 2-6 | 0.02 max | 0.02 max | 2.5 max | 20-22.5 | 2.5-3.5 | 0.35 max |
Hastelloy C276 | Balance | 0.01 max | 15–17 | 1.0 max | 0.08 max | 4–7 | 0.04 max | 0.03 max | 2.5 max | 14.5–16.5 | 3–4.5 | 0.35 max |
Mechanical Properties Of ASME SB366 Hastelloy Buttweld Pipe Fittings
Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
---|---|---|---|---|---|
Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000, MPa – 690 | Psi – 45000, MPa – 310 | 45 % |
Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
Physical Properties of Hastelloy C22 Buttweld Fittings
Density | 0.314 lb/in3 |
---|---|
Specific Gravity | 8.69 lb/in3 |
Specific Heat (Btu/lb/Deg F - [32-212 Deg F] | 0.1 |
Melting Point (Deg F) | 2550 |
Thermal Conductivity | 70 |
Mean Coeff Thermal Expansion | 6.9 |
Modulus of Elasticity Tension | 29.9 |
Physical Properties of Hastelloy C276 Buttweld Fittings
Physical Property | Temp., °F | British Units | Temp., °C | Metric Units |
---|---|---|---|---|
Density | 72 | 0.321 lb/in.3 | 22 | 8.89 g/cm.3 |
Melting Range | 2415-2500 | 1323-1371 | ||
Electrical Resistivity | 75 | 51 microhm-in. | 24 | 1.30 microhm-m |
Mean Coefficient of Thermal Expansion |
75-200 | 6.2 microinches/in.-°F | 24-93 | 11.2 x 10-6 m/m•K |
75-400 | 6.7 microinches/in.-°F | 24-204 | 12.0 x 10-6 m/m•K | |
75-600 | 7.1 microinches/in.-°F | 24-316 | 12.8 x 10-6 m/m•K | |
75-800 | 7.3 microinches/in.-°F | 24-427 | 13.2 x 10-6 m/m•K | |
75-1000 | 7.4 microinches/in.-°F | 24-538 | 13.4 x 10-6 m/m•K | |
Thermal Conductivity | -270 | 50 Btu-in./ft.2 hr.-°F | -168 | 7.2 W/m•K |
-100 | 60 Btu-in./ft.2 hr.-°F | -73 | 8.6 W/m•K | |
0 | 65 Btu-in./ft.2 hr.-°F | -18 | 9.4 W/m•K | |
100 | 71 Btu-in./ft.2 hr.-°F | 38 | 10.2 W/m•K | |
200 | 77 Btu-in./ft.2 hr.-°F | 93 | 11.1 W/m•K | |
400 | 90 Btu-in./ft.2 hr.-°F | 204 | 13.0 W/m•K | |
600 | 104 Btu-in./ft.2 hr.-°F | 316 | 15.0 W/m•K | |
800 | 117 Btu-in./ft.2 hr.-°F | 427 | 16.9 W/m•K | |
1000 | 132 Btu-in./ft.2 hr.-°F | 538 | 19.0 W/m•K | |
Specific Heat (Calculated) |
Room | 0.102 Btu/lb.-°F | Room | 427 J/kg•K |
